Meiren Truck

Meiren Truck

“Meiren Truck” is Meiren Engineerin OÜ vision of a universal road maintenance truck, that gives possibility to use the vehicle with maximum efficiency. For example, the universal road maintenance truck has 8×4 axle formula and is equipped with hook lift device or swap body system, so that in need the vehicle can be equipped with various equipment for winter- and summer road maintenance or construction.

Images

Description

“Meiren Truck”, our Demo truck is user friendly, because it is quickly and easily assembled. The truck is equipped with Meiren side shiftable products like rotary broom (HTN3000) and front snow plow (MSPN4004LH), also with Humus tipper box for hook lift (ML145), Meiren side swing snow plow on a hook lift frame (KSM3704LH), Meiren underbody scraper (AS2507) and Meiren new hydraulic control system and many other convenience solutions.

  • Equipment

    MEIREN HYDRAULIC FRONT LOCKING SYSTEM (FINNISH MOUNTING PLATE) AND HYDRAULIC MULTI FASTER

    For quick and stress-free front equipment mounting we have added following convenience solutions to the truck:

    • Unique solution, as Meiren hydraulic Finnish mounting plate locking system, that is easily operated and it is locking the middle mounting axle already with the first hooking.
    • Hydraulic multi faster, that allows quick and easy connection even for pressurized hydraulic hoses, without the driver getting himself dirty.
    MEIREN SIDESHIFTABLE BROOM HTN3000


    Suitable for summer or winter use, the truck is equipped with Meiren rotary broom.

    • Sideshift as standard equipment (max. shift 930 mm)
    • Hydraulic floating, adjustable (bristles wear down slower)
    • Mechanical side tilting, lockable (bristles won’t wear down to so called carrot)
    • Boltable extra equipment (this allows you to add or remove extra equipment afterwards)
    • Boltable fitting parts (this allows to use the broom with a truck, tractor or loader)

    More information here

    HUMUS ML145 HOOK LIFT TIPPER BOX FOR MATERIAL TRANSPORTATION OR SPREADING

    Suitable for summer and winter use, the truck is equipped with Humus tipper box for hook lift.

    • The bottom and sides of the tipper box are made out of Hardox, which makes him one of the lightest hook lift tipper boxes on his segment (2360 kg)
    • The inner length of the tipper box is ca 6 m, volume 14,5 m3
    • The tipper box is equipped with so called Norwegian tailgate system (upper and lower tailgate, where the lower tailgate is hydraulically operated)
    • The hydraulic tailgate fasteners have safe release (to prevent hydraulic hoses from breaking and getting oil pollution)

    More information here

    MEIREN SIDESHIFTABLE FRONT SNOW PLOW MSPN4004LH

    For the best cleaning results, the truck is equipped with Meiren MSPN-04 front plow.

    • Meiren patented Sideshift function (shifting sideways max. 1200mm)
    • Meiren patented polyurethane blade holders, that copy the road surface and overcome obstacles
    • Available 6 different width and 4 different height or shape of the wing
    • Hydraulic additional blade mechanism (4 or 6 sections), with “EasyFix” rubber blade quick fix.
    • Additional equipment Hydraulic snow stop
    • Boltable extra equipment (this allows you to add or remove extra equipment afterwards)
    • Boltable fitting parts (this allows to use the snow plow with a truck, tractor or loader)

    More information here

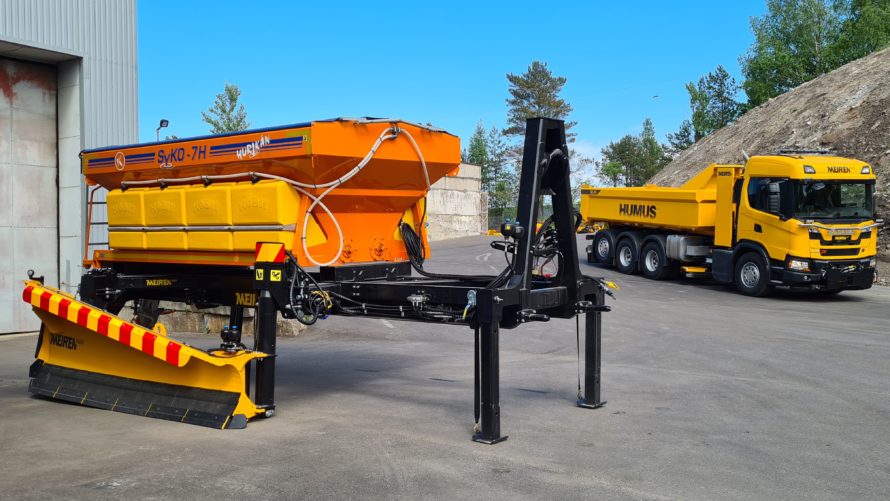

    MEIREN HOOKLIFT FRAME WITH SIDE WING SNOW PLOW KSM-04

    The Meiren hooklift frame allows quickly mount or demount the vehicle with side snow plow and spreader.

    • The hook lift frame is manufactured to fit with the truck, hook lift device, the Meiren side wing snow plow and customer’s spreader.
    • Quick mounting to the vehicle is possible when Meiren side wing snow plow and customer spreader are detached to the hook lift frame.
    • The side wing snow plow is separately removable, for example to increase the payload capacity of the truck, e.g. for working only with the spreading material
    • There are 5 different widths of KSM-04 available (smallest 1,9m and widest 5,5m)
    • KSM-04 is equipped with polyurethane blade holders that copy the road surface and overcome obstacles.
    • Tilt of the plow wing (for cutting snowbanks) and hydraulic additional blade are available as KSM04 extra equipment.

    More information here

    MEIREN EXTENDABLE UNDERBODY SCRAPER AS2507
    The best tool for removing packet snow from the road surface or grading the gravel roads is Meiren underbody scraper AS2507.

    • AS2507 is equipped with two hydraulic telescopic extension (right/left)
    • Available with fixed or rotating working angle
    • Available with separate control system (Joystick) and screen
    • The plow can be pre-pressured to the ground from the control system screen and used as in floating position (holding the exact adjusted pressure to the ground).

    More information here

    MEIREN NEW TRUCK HYDRAULIC CONTROL SYSTEM

    Meiren new Truck hydraulic control system works through a joystick and a wireless touch screen.

    • The hydraulics are controlled either from the joystick in the driver’s cab or from the wireless touch screen.
    • The touch screen can be used to control the vehicle’s hydraulics or to preadjust the hydraulic settings as (equipment individual operation speeds, pressures, etc.)
    • The touch screen is connected to the truck trough Bluetooth connection and can be used outside the car driver’s cab, e.g. to install a front plow or to control other hydraulics.
    • Meiren touch screen program can be installed to any Android device, as it is an App.
    • With Meiren new control system, it is possible already today, to use speed-sensitive plow pressuring system (requested in Norway).
    DEMO VEHICLE TECHNICAL DATA AND COMPONENTS

    • Base vehicle Scania G450 B8x4*4NA
    • Hydraulic pump, Parker VP1-130
    • Hydraulic components, Danfoss
    • Hook lift device, Multilift Ultima21S 61
    • Snow plow headlights, Bullpro
    • Working lights Ermax 20W (7pcs)
    • LED lightbar Truckvision
