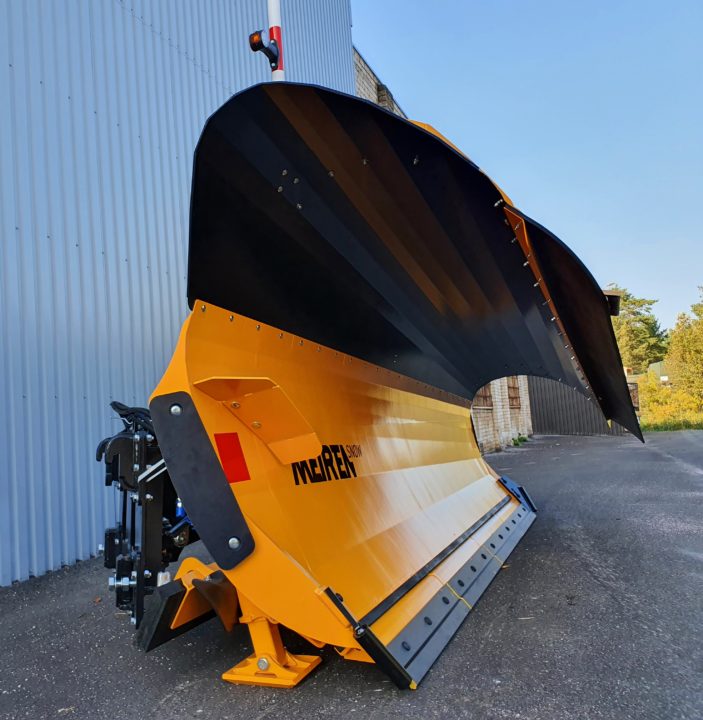

Highway snow plow MSKN, sideshiftable

Highway snow plow MSKN, sideshiftable

MSKN-03 series snow plows are mainly designed for working on larger highways, side roads and also on gravel roads, where the working conditions are difficult. The snow plow has an aggressive blade angle, which ensures lower fuel consumption. The moldboard design is optimized for better snow throwing even at high speeds and in difficult snow conditions. The blade holders are equipped with Meiren noise reduction system, which also allow blades to slightly copy the road surface, for receiving better cleaning result. The sideshift function makes working with the plow more comfortable and effective, especially while using side plow. Depending on the work requirements , it is possible to order the snow plow with different height and shape. The plow can be equipped with hydraulic additional blade system, where rubber blades are fixed with EASY Fix system.

Images

Description

PATENTED BIDIRECTIONALLY SHIFTABLE PARALLELOGRAM

Working width up to 8,5m – The unique patented parallelogram enables shifting the plow sideways and lifting the entire plow. Sideshift gives the driver more options to manoeuvre the front plow. Combined with Meiren 5.5 m sidewing the working width is even up to 8,5m.



Wireless switch is available as extra equipment for controlling additional valves.  Additional valves need to be installed to the snow plow, if the car doesn’t have enough hydraulic outlets for additional blade– or sideshift functions.

Connection to the additional valves is via radio communication.

Juhtmevaba lüliti

















HYDRAULIC ADDITIONAL BLADE MECHANISM

  • Clean road surface to the maximum – Hydraulic additional blade comprising 4 sections divides pressure between the front blade and additional blade. Each additional blade section has its own cylinder, ensuring operational pressure in the extent of the entire additional blade. In the event of packed snow, the weight of the entire plow is transferred to the front blade; in the event of slush, weight is transferred entirely on the additional blade equipped with rubber blades. Using the right pressure in the additional blade system ensures extremely clean road surface and highly economical use of the blades. It is possible to mount also 6 section hydraulic additional blade mechanism.
  • Replacing blades in 5 – 10 minutes –The „Easy Fix system” Hydraulic additional blade mechanism LHof rubber blades (there are no fixing slots in the rubber blade) saves time when releasing and securing the bolts. This allows you to position the blade at any desired height. It takes only 5 – 10 minutes to replace or adjust the rubber blades!
  • TECHNICAL DATAMSKN 3403MSKN 3703MSKN 4003
    Overall width:3 998 mm4 303 mm4 658 mm
    Overall width of blades:3 355 mm3 660 mm3 965 mm
    Min plowing width of blades*:2 495 mm2 737 mm2 965 mm
    Max turning angle (left/right)*:37°/42°37°/42°37°/42°
    The cutting angle of blades (vertically):40°40°40°
    Standard height of the moldboard (left/right):1 050/1 500 mm1 050/1 500 mm1 050/1 500 mm
    Weight with standard equipment:980 kg1 017 kg1 055 kg
    Weight with extra equipment:1 255 kg1 309 kg1 366 kg
    * - Values given are only achievable with the “Hydraulic Sideshift function”!
  • Equipment

    • Patented lifting frame (parallelogram) with Sideshift readiness
    • Lifting and pivot cylinder
    • Moldboard, partially plastic
    • Moldboard, with Standard height
    • Fixed noise reduction blade holders, blade cut angle 40° (vertically)
    • Polyurethane blade holders
    • Mounting ears according to vehicle mounting plate
    • Hydraulic hoses with ½”  quick couplers (male)
    • Interchangeable, fixed corner blades
    • Adjustable snow flow guide
    • Hydraulic impact relief for pivot cylinder (valve with hydraulic battery)
    • Mechanically adjustable support leg (for storing)
    • Meiren standard safety markings
    • LED marker lights
    • High wear resistant polyurethane color, Meiren yellow
  • Extra equipment
